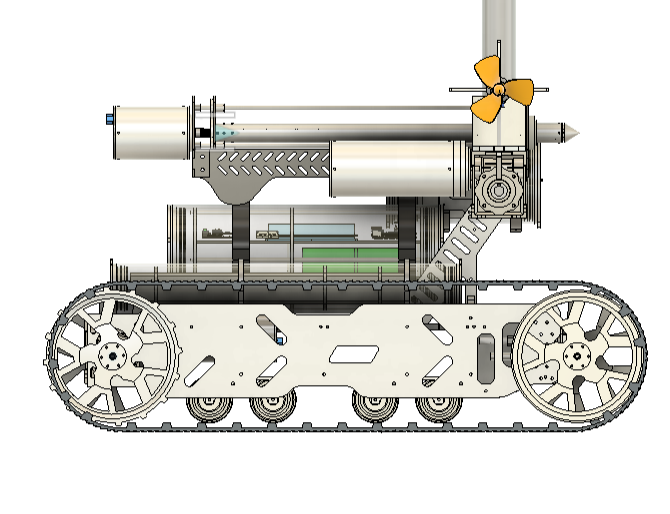

Marenus — Amphibious Crawling Robot
A rugged and highly adaptable platform engineered for shoreline, intertidal, and breakwater operations. Its modular layout supports interchangeable payloads for CPT, cable tracking, mine disposal, sonar inspections and precise manipulation tasks. Powered by a high-bandwidth tethered Ethernet link, Marenus enables real-time control and data acquisition even in demanding near-shore environments.
Technical Specifications
| Weight | 45 kg |
|---|---|
| Payload Capacity | 25 kg |
| Operational Depth | Up to 100 m |
| Material | AL6061-T6 (Anodized Black) |
| Dimensions | 1.0 × 0.9 × 0.4 m (Payload bay extra) |
| Soil Capability | Crawls on soft soil with 2 kPa bearing strength |
| Gradeability | Up to 45° (surface & underwater) |
| Speed | 3.6 km/h (Surface), 2.5 km/h (Underwater) |
| Stability | Stable up to 5 knots current |
| Range | 4–5 km wireless (Surface), 250 m tethered (Underwater) |
Integrated Sensors & Payload Options
- Depth sensor
- Forward-looking sonar
- 2× Underwater cameras (2 MP)
- 4× Underwater LED lights (1500 lumen each)
- Hydrophones
- CTD (Conductivity, Temperature, Depth) sensors
- Cone Penetration Test module (CPT)
- Underwater cable tracking module
- Mine disposal tools (precision cutter / manipulator arm)
- Other custom payloads on request
Key Capabilities
- Shoreline, intertidal and breakwater intervention
- In-situ geotechnical surveys and CPT deployment
- Underwater cable tracking and identification
- Mine disposal and precision intervention using modular tools
- High-bandwidth tethered Ethernet for real-time data streaming
- Modular payload bay for rapid reconfiguration
- High stability for operations in up to 5-knot currents
